Mineral Insulated Thermocouples

Get a Price/Quote

Product Details:

Type Mineral Insulated Thermocouple
Usage Temperature measurement in industrial applications
Theory Seebeck Effect / Thermoelectric Principle
Customized Yes, available upon request
Density 7.98 Gram per cubic centimeter(g/cm3)
Measuring Range Full temperature range of selected thermocouple type
Melting Point >1200C (dependent on sheath and conductor materials)
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

Mineral Insulated Thermocouples Price And Quantity

Minimum Order Quantity 100 Piece

End Fittings Threaded, flanged, compression fittings as per requirement
Sheath Length Up to 30 meters continuous
Cable Insulation Mineral Insulated (MgO)
Lead Type Solid or stranded
Sheath Surface Finish Bright annealed or polished
Accuracy Standard Conforms to IEC/S or ANSI requirements
Connector Options Standard miniature or large thermocouple connectors available
Ingress Protection IP65 / IP67 (depending on end seal)
Shielding Electromagnetic interference protection available
Sheath Diameter Available from 0.5 mm to 8.0 mm
Ambient Humidity Resistance Excellent, suitable for harsh or moist environments

Mineral Insulated Thermocouples Product Specifications

Size Outer diameter from 0.5 mm to 8.0 mm
Tolerance 0.5C to 2.5C (depending on type and configuration)
Wire Length Up to 100 meters (customized as per requirement)
Measuring Range Full temperature range of selected thermocouple type
Sensor Type Type J, K, T, E, N, or others (based on specification)
Density 7.98 Gram per cubic centimeter(g/cm3)
Usage Temperature measurement in industrial applications
Melting Point >1200C (dependent on sheath and conductor materials)
Customized Yes, available upon request
Theory Seebeck Effect / Thermoelectric Principle
Type Mineral Insulated Thermocouple
Precision Class 1 / Class 2 as per IEC60584

End Fittings Threaded, flanged, compression fittings as per requirement
Sheath Length Up to 30 meters continuous
Cable Insulation Mineral Insulated (MgO)
Lead Type Solid or stranded
Sheath Surface Finish Bright annealed or polished
Accuracy Standard Conforms to IEC/S or ANSI requirements
Connector Options Standard miniature or large thermocouple connectors available
Ingress Protection IP65 / IP67 (depending on end seal)
Shielding Electromagnetic interference protection available
Sheath Diameter Available from 0.5 mm to 8.0 mm
Ambient Humidity Resistance Excellent, suitable for harsh or moist environments

Product Description

We are engaged in providing our clients with a huge assortment of Mineral Insulated Thermocouples. These products are manufactured by our qualified professionals with the use of magnesium oxide. Being able to offer accurate readings, these products are mainly demanded by molding industries. These Mineral Insulated Thermocouples are widely appreciated in the market as these products are very durable and have a fast response time. These products are available in various specifications to meet the various requirements of our clients.

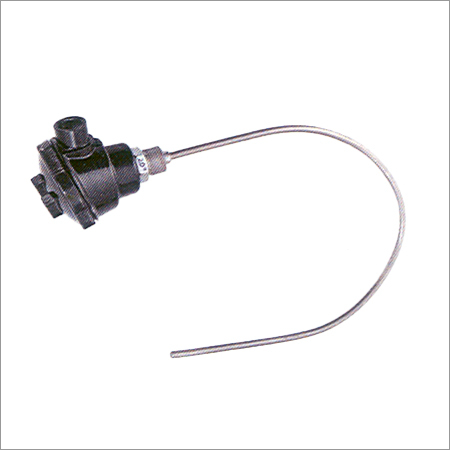

MINERAL INSULATED HEAD TYPE THERMOCOUPLES

Seamless extruded thermocouples with magnisium oxide tightly compact around the conductors which enables it to be very flexible and also give very fast response because of small diameters.

Type of Thermocouple	Chromel Alumel (K) type, Iron Constantan (J) type
Sheath Material	SS 316, Inconal 600
Sheath O.D.	1mm, 1.5 mm, 2 mm, 3 mm, 4.76mm, 6 mm and 8 mm
Thermocouple Length	12", 18", 24", 30" and other lengths on request
Construction of the Thermocouple	Simplex & Duplex ( in 6 mm & 8 mm),both Grounded & Ungrounded

Robust Design and Flexible Sizing

Mineral Insulated Thermocouples feature a durable sheath, available in bright annealed or polished finish, with diameters from 0.5 mm to 8.0 mm to suit specific installation needs. Their mineral insulated cable design provides enhanced mechanical stability and superior humidity resistance, making them suitable for harsh and moist environments. Sheath lengths can be customized up to 30 meters, offering exceptional flexibility for comprehensive temperature profiling.

Superior Performance and Accuracy

MITs conform to IEC/S and ANSI standards for accuracy and precision, with tolerances ranging from 0.5C to 2.5C depending on type and configuration. They offer full temperature range compatibility with common sensor types (J, K, T, E, N, and more), and are available in Class 1 or Class 2 precision as per IEC60584. Electromagnetic shielding ensures stable measurements, even in electrically noisy industrial settings.

Customization and Application Versatility

Choose from a range of end fitting options including threaded, flanged, or compression styles to match installation requirements. Wire lengths can be tailored up to 100 meters, and standard, miniature, or large connectors are offered for seamless integration. As an exporter, manufacturer, supplier, and trader based in India, custom solutions are available for diverse process control and monitoring applications across industries.

FAQs of Mineral Insulated Thermocouples:

Q: How are mineral insulated thermocouples installed in industrial environments?

A: MITs can be installed using various sheath diameters and custom sheath or wire lengths. End fittings such as threaded, flanged, or compression types allow for secure placement in machinery, pipelines, or process tanks, adapting to different industrial setups.

Q: What benefits does mineral insulation (MgO) offer for thermocouple cables?

A: Mineral insulation, typically magnesium oxide (MgO), delivers excellent electrical insulation and thermal conductivity. It enhances durability, allows the thermocouple to withstand high temperatures above 1200C, and provides outstanding resistance to ambient humidity and harsh industrial conditions.

Q: When should electromagnetic interference shielding be selected for a thermocouple?

A: Shielding is recommended in environments with significant electrical noise, such as near motors, variable frequency drives, or other equipment that can cause erroneous readings. The shielding protects signal integrity, ensuring accurate temperature data.

Q: Where can these mineral insulated thermocouples be used?

A: MITs are well-suited for industrial temperature measurement in chemical plants, power generation, steel manufacturing, food processing, and other sectors that require precise, reliable, and durable sensing in challenging conditions.

Q: What types of connectors are available with mineral insulated thermocouples?

A: Standard miniature, large connectors, and custom designs are available. Selection depends on your installation requirements, system compatibility, and ease of maintenance or replacement.

Q: How is the accuracy of mineral insulated thermocouples assured?

A: MITs conform to IEC/S or ANSI accuracy standards and IEC60584 for sensor types. Each thermocouple is calibrated as per class requirements, with tolerances ranging from 0.5C to 2.5C depending on model and configuration.

Q: What customization options can be provided for these thermocouples?

A: Customers can specify sheath diameter, length (up to 30 meters), wire length (up to 100 meters), sensor type, end fittings, surface finish, and connector type. Custom manufacturing supports unique process needs and demanding installations.
