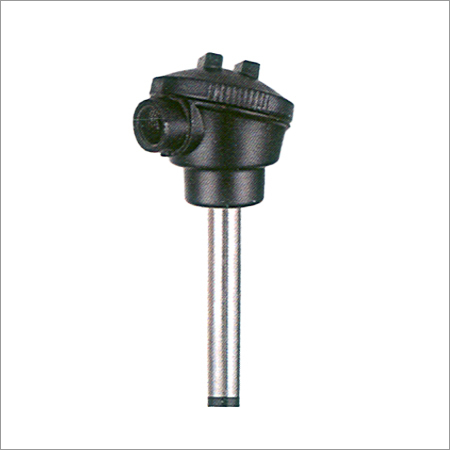

General Purpose Head Type Thermocouples

Next > >

Send Inquiry

Product Code : TC - 01

Brand Name : Alpha Sensors

Product Description

Our valued clients can avail from us high quality General Purpose Thermocouples Head Type. These products are highly durable and can measure temperatures up to 700 degree centigrade with accuracy. High quality steel and other components are obtained from most reliable vendors of market to manufacture these products. The General Purpose Thermocouples Head Type that we offer are packed using premium quality material to ensure their safe transit at the time of dispatch. To meet the specific requirements of our clients, we offer these products in various specifications.

Used in the industry to measure temperature up to a maximum of 700° C

Type of Thermocouple	Chromel Alumel (K) Iron Constantan (J)
Sheath Material	SS 304, SS 316
Sheath O.D.	5 mm, 6 mm, 8 mm, 10 mm, 12.7 mm and other sizes are available on request
Thermocouple Length	Standard 4" , 6", 12" , 18" , 24" and other sizes are available on request
Process Connection	Standard 1/2" BSP. Others are available on request
Compression Fitting	1/4" , 3/8" , 1/2", 3/4" 1", BSP & NPT
